Technical specifications

Key Features

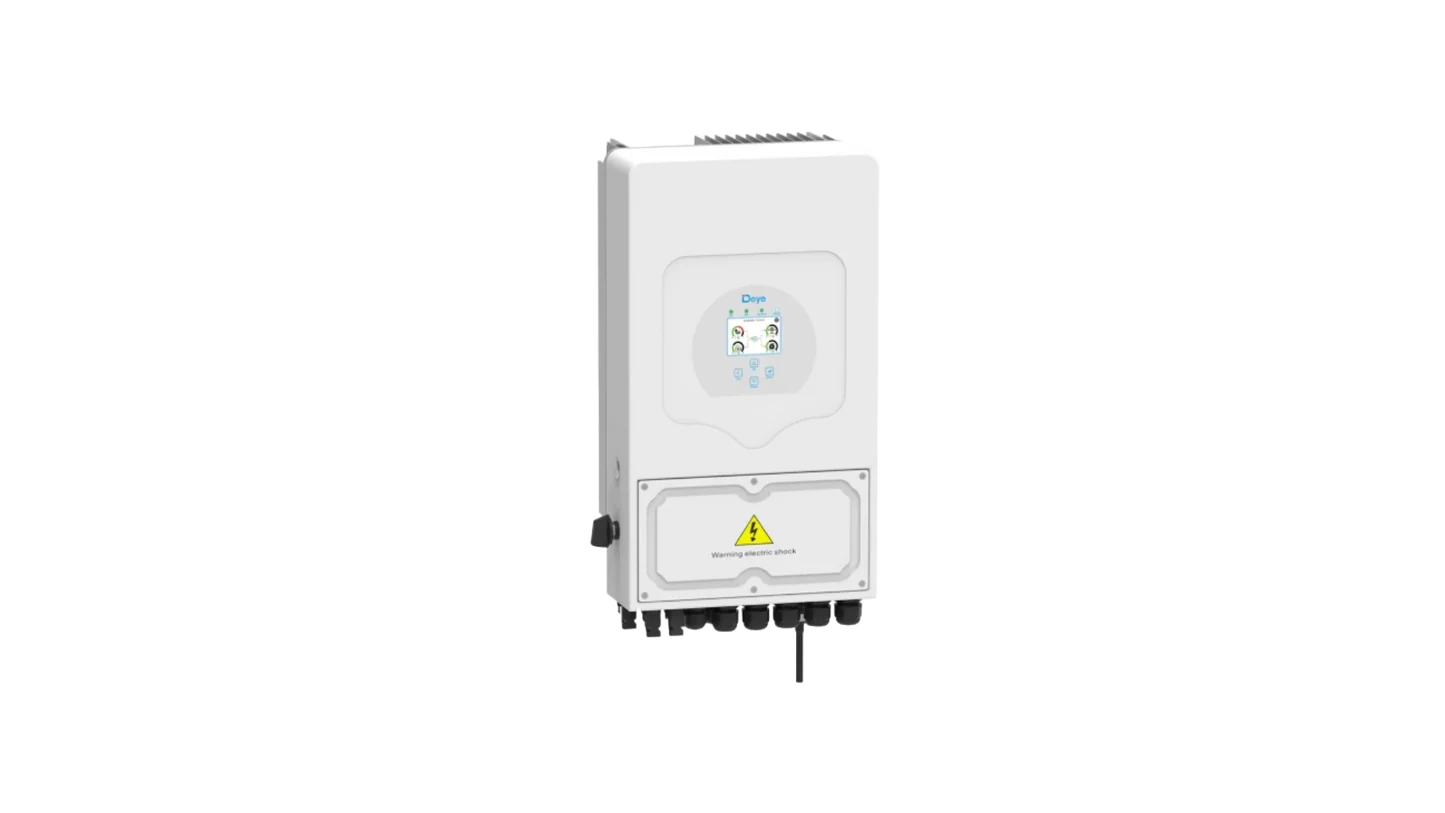

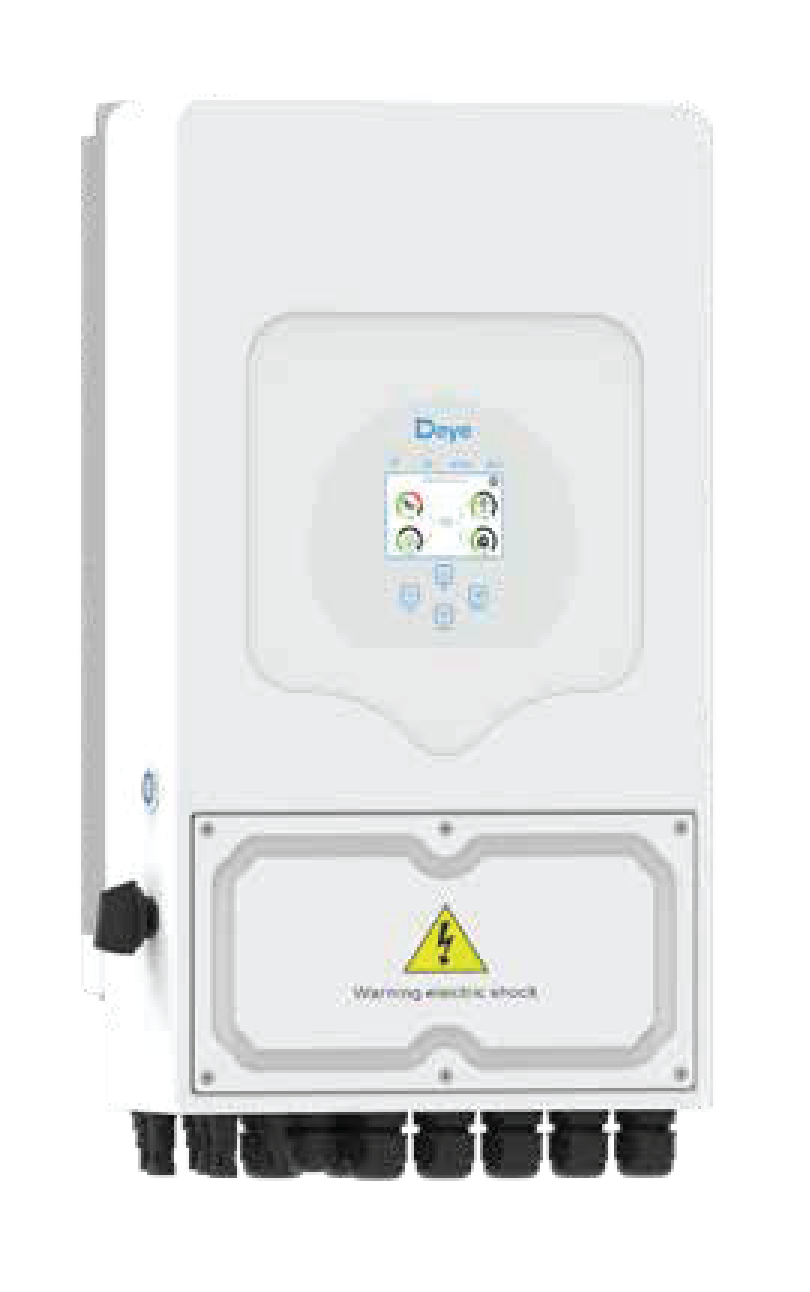

• High Charging/Discharging Capabilities: The Deye SUN-(3.6-8)K-SG05LP1-EU inverters support a maximum charging/discharging current of 190A. This high capacity ensures efficient energy storage and discharge, enhancing overall energy utilization.
• Diesel Generator Compatibility: These inverters can store energy from diesel generators, offering an added layer of power reliability and ensuring that backup power sources are effectively utilized.
• Parallel Operation: One of the standout features of this series is its ability to support up to 16 units in parallel for both on-grid and off-grid configurations. This parallel capability provides significant scalability, accommodating increasing energy demands without compromising performance.
• Battery Versatility: The inverters are compatible with both lead-acid and lithium-ion batteries. Additionally, multiple batteries can be connected in parallel to extend energy storage capacity, catering to various storage needs.
• Retrofit Capabilities: The ability to AC couple with existing solar systems makes these inverters ideal for retrofitting, allowing users to upgrade their energy systems without a complete overhaul.
• User-friendly Interface: A colorful touch LCD screen provides an intuitive interface for monitoring and control, ensuring that users can easily access and manage system information.
• Durable Design: Built to last, these inverters boast an IP65 protection rating, which guards against dust and water ingress, making them suitable for installation in various environmental conditions.

Technical Specifications

• Battery Input Data:
  • Battery Type: Lead-acid or Lithium-ion
  • Battery Voltage Range: 40-60V
  • Max. Charging/Discharging Current: 190A
  • Self-adaptation BMS Support: Ensures compatibility with different battery management systems.
• PV String Input Data:
  • Maximum PV Input Power: Up to 10,400W
  • Maximum PV Input Voltage: Up to 500V
  • MPPT Voltage Range: 150-425V
• AC Input/Output Data:
  • Rated AC Power: From 3600W to 8000W, depending on the model
  • Peak Power (off-grid): Double the rated power for 10 seconds
  • Power Factor Adjustment: 0.8 leading to 0.8 lagging
  • Efficiency: Max. efficiency of 97.6%, Euro efficiency of 96.5%, and MPPT efficiency greater than 99%
• Protection & Compliance:
  • The inverters include an extensive range of protection features such as AC output overcurrent, overvoltage, short circuit, and thermal protection, ensuring safe and reliable operation.
  • Compliance with international standards, including IEC 61727, IEC 62116, CEI 0-21, and others, ensuring global operability.
• Environmental & Physical Features:
  • Operating Temperature Range: -40°C to +60°C, with derating above 45°C
  • Humidity: 0-100%
  • Altitude: Up to 2000m
  • Noise Level: Less than 30dB
  • Ingress Protection: IP65, ensuring resistance to dust and water.
  • Cooling: Intelligent air cooling system ensures optimal thermal management.
  • Dimensions: 330×580×232 mm (excluding connectors and brackets)
  • Weight: 24.9 kg
• Interface & Communication:
  • Monitoring Modes: Options for GPRS, WIFI, Bluetooth, 4G, and LAN (optional)
  • Communication Interfaces: RS485, RS232, and CAN, providing versatile connectivity options.

With robust performance and advanced features, the Deye SUN-(3.6-8)K-SG05LP1-EU hybrid inverters ensure reliable and efficient energy management, making them a prime choice for modern energy systems looking for cutting-edge solutions.
